# Syntax

## Syntax †

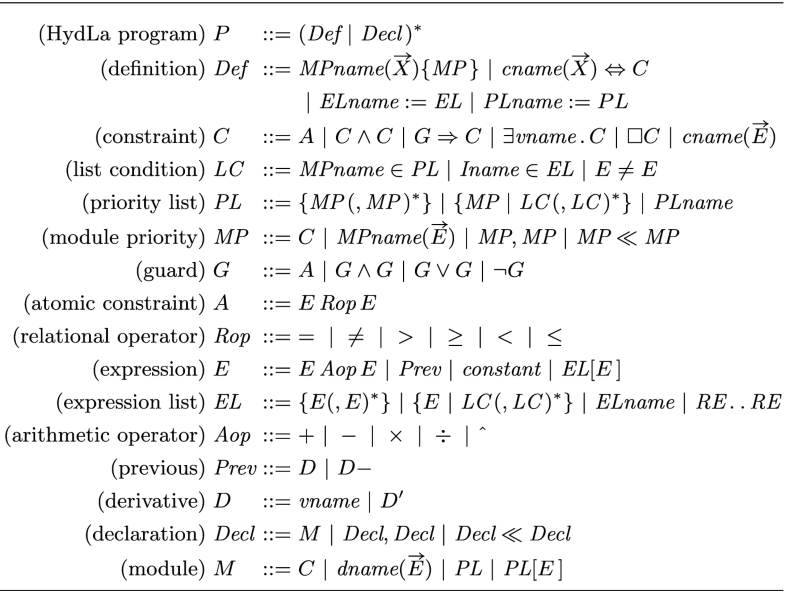

- The abstract syntax of HydLa is given in the following BNF.

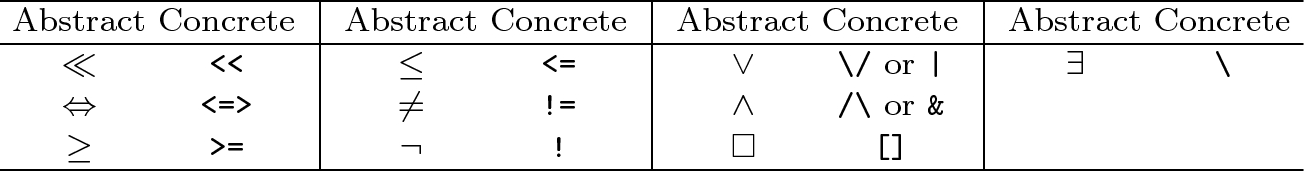

- The concrete syntax uses the symbols in the following table.
- A HydLa program consists of
*definitions of constraints*and*declarations of constraint hierarchies*, each of which is described below.

### Definition †

- A definition allows us to define a named constraint with arguments using the operator "$\texttt{<=>}$". It allows us to define a named constraint hierarchies as well. If the definition has no arguments, we can omit parentheses.

INIT <=> y = 0 & y' = 0. // definition of a constraint for the initial state of a ball. FALL <=> [](y'' = -10). // definition of a constraint for falling of the ball. BOUNCE(x) <=> [](x- = 0 => x' = -x'-). // definition of a constraint for bouncing of the ball. BALL{FALL << BOUNCE}. // definition of a constraint hierarchy for the ball.

*Constraints*allow conjunctions of constraints and implications.- The antecedents of implications are called
*guards*. - "$\texttt{[]}$" (called
*box*or*always*) is a temporal operator which means that the constraint always holds from the time point at which the constraint is enabled. - A variable name ($\textit{vname}$) starts with a lowercase letter.
- The notation $\textit{vname}′$ means the derivative of $\textit{vname}$, and $\textit{vname}\verb|−|$ means the left-hand limit of $\textit{vname}$.

### Declaration of Constraint Hierarchies †

- A constraint can be given higher or lower priority than another.
- The declaration $A \mathrel{\texttt{<<}} B$ states that the constraint A is weaker (i.e., of lower priority) than B. The relation $A \mathrel{\texttt{<<}} B$ is a strict partial order which is irreflexive, transitive and asymmetric.
- If we compose constraints with "$\texttt{,}$" instead of "$\texttt{<<}$", there is ordering between them.
- The operator "$\texttt{<<}$" has a higher precedence than "$,$", that is, $A, B \mathrel{\texttt{<<}} C$ is equivalent to $A, (B \mathrel{\texttt{<<}} C)$.
- The unit of constraints declared with a priority is called a
*module*or a*constraint module*. - The meaning of a HydLa program is a set of trajectories that satisfy maximal consistent sets of candidate constraint modules sets at each time point.
- Each candidate constraint set must satisfy the conditions below:

\[\forall M_1, M_2((M_1 \ll M_2 \land M_1 \in {MS} \,) \Rightarrow M_2 \in {MS}\,)\] \[\forall R (\neg \exists M( R \ll M ) \Rightarrow R \in {MS} \,)\]

### List Comprehension †

- In the modeling of hybrid systems, we often come across necessity to introduce multiple similar objects.
- HydLa provides list comprehention to describe models with multiple objects.
- A list can be defined by the operator "$\texttt{:=}$", like $\texttt{X := {x0..x9}.}$
- There are two types of lists: priority lists and expression lists.

#### Priority List †

- The first type, priority lists, can be denoted by an extensional form $\{\textit{MP}_1, \textit{MP}_2, ..., \textit{MP}_n\}$.

- They also can be denoted intensionally as $\{\textit{MP} \mid \textit{LC}_1, \textit{LC}_2, ..., \textit{LC}_n\}$.

- For example, $\{\texttt{INIT(i)}\ |\ \texttt{i in \{1,2,3,4\}}\}$ is equivalent to $\{\texttt{INIT(1)}$, $\texttt{INIT(2)}$, $\texttt{INIT(3)}$, $\texttt{INIT(4)}\}$.
- If a HydLa program includes declarations of priority lists, the elements of the lists are expanded, that is, a declaration of $\{A, B, C\}$ is equivalent to $A, B, C$.

#### Expression List †

- The second type, expression lists, are lists of arithmetic expressions.
- We can denote an expression list in an extensional or intensional notation as well as a priority list.
- In addition, we can use range expressions of the form $\{\textit{RE} \texttt{..} \textit{RE}\,\}$, where $\textit{RE}$ is an arithmetic expression without variables or an arithmetic expression with a variable whose name terminates with a number such as $\texttt{x0}$ and $\texttt{y1}$.

#### Examples †

- An expression list $\verb|{1*2 + 1..5}|$ is equivalent to $\verb|{3,4,5}|$.
- An expression list $\verb/{j | i in {1,2}, j in {i+1..4}}/$ is equivalent to $\verb|{2,3,4,3,4}|$.
- An expression list $\verb|{x1..x3}|$ is equivalent to $\verb|{x1,x2,x3}|$.

#### Other Notations †

- The $n$-th $(n > 0)$ element of a list $L$ can be accessed by $L\texttt{[}n\texttt{]}$.
- The index allows an arbitrary expression that results in an integer.

- The size of a list $L$ is denoted by $\texttt{|}L\texttt{|}$, which can be used as a constant value in a HydLa program.
- $\texttt{sum(}L\texttt{)}$ is a syntactic sugar of the sum of the elements in an expression list $L$

### Built-in Constants and Functions †

- Napier's constant "$\texttt{E}$" and the ratio of circumference to diameter "$\texttt{Pi}$" can be used as constant values.
- The following mathematical functions are available. Note that $\texttt{Sqrt(}x\texttt{)}$ and $\texttt{Exp(}x\texttt{)}$ are missing because they can be expressed as $x\verb|^(1/2)|$ and $\verb|E^|x$, respectively.

\begin{align} &\texttt{Log(}x\texttt{)}\\ &\texttt{Sin(}x\texttt{)}, \texttt{Cos(}x\texttt{)}, \texttt{Tan(}x\texttt{)}, \texttt{Asin(}x\texttt{)}, \texttt{Acos(}x\texttt{),} \texttt{Atan(}x\texttt{)}\\ &\texttt{Sinh(}x\texttt{)}, \texttt{Cosh(}x\texttt{)}, \texttt{Tanh(}x\texttt{)}, \texttt{Asinh(}x\texttt{)}, \texttt{Acosh(}x\texttt{)}, \texttt{Atanh(}x\texttt{)}\\ &\texttt{Floor(}x\texttt{)} \end{align}

- Detailed syntax and semantics can be found in this comprehensive paper and this PhD thesis.
