The relational model

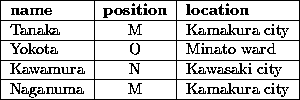

Table 1: An example of relation

Name, position and location are attributes under which there are attribute values. A row of attribute values is called a tuple, therefore, a relation is a set of tuples. And a relation is an ordered set of attributes, i.e. . A relation is sometimes represented as . Since relations have very simple expressions, mathematical discussion of which is also simple. Even though relations are kind of tables, all tables are not recognized as relations. The following two conditions must be met for a table to be a relation.

1. Tuples must be unique in a relation.
2. Keys are a set of attributes to uniquely identify each tuple, of which a primary key can be chosen. The primary key must not be a null value.

How can we represent the real world as relations. First, collect attributes of the world and make a table like table1. This flat table representation is a data structure of the relational data model. However, this relation has redundancy, for example in combination of position and location. Furthermore, if you change a combination of name and position, information of position and location might be meaningless. Thus, we normalize the original table(first normal form) taking into account dependencies.

A functional dependency can be defined when a collection of attribute values in relation uniquely decides another collection of attribute values . In this case, is functionally dependent on and expressed as . Suppose is an attribute value of in a tuple r, the functional dependency means as follows for arbitrary tuples and .

In table1, there are two functional dependencies, that are nameposition and positionlocation. If Yokota changes his position, the location of which have to be also changed. Then the information that position O is in Minato ward will get lost. That is why we devide table1 into table2. Generally, we should devide a table into tables in which functional dependencies are all on their keys. This type of relation is in third normal form. The decomposition based on functional dependencies includes second normal form which is different from third normal form in terms of kind of functional dependencies. Third normal form not only prevents above mentioned loss of information but also makes tables simpler excluding repetitive pairs of position and location as you can see in table2. In other words data redundancy decreases, so you will have to update only one tuple if the location of position O changes.

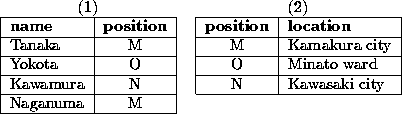

Table 2: Decomposition by functional dependencies

Normalization of relations are done not only by functional dependencies but by multivalued dependencies. Let's look at table 3. This relation consists of three attributes of name, hobby and club. It has no functional dependency.

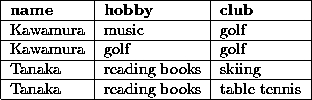

Table 3: Relation including multivalued dependencies

If you devide table3 into table4, redundancy decreases. Both hobby and club have plural values against name. This property is called multivalued dependency. In this case the multivalued dependencies are expressed as namehobby and nameclub, which means that the original relation can be decomposed into two relations of and . It is obvious that even if decomposed relations are joined to a relation, no information loss occurs.


Table 4: Decomposition by multivalued dependencies

Dependencies other than functional and multivalued dependencies are considered. The most important thing here is that joined relations have the same amount of information as decomposed relations. Muximum relationship among decomposable attributes are called join dependency.

Next, let's think about data manipulations of relations. In the relational model there are relational algebra which centers on set operations and relational calculus which uses first-order predicate calculus.

Relational algebra includes the following five operations.

(1)

Union
The union of two relations R and S, is a set union of tuples in R and those in S.

(2)

Difference
The difference of two relations R and S, is a set of tuples which belong to R and do not belong to S.

(3)

Cartesian Product
The Cartesian product or direct product of two relations R and S, is

(4)

Selection
To take a partial relation which satisfies a conditional logical formula C out of a relation R is called selection from R by C. The expression of the selection is . C is a logical formula composed of attribute names, attribute values, arithmetic operators, comparison operatiors and logical operators. The evaluation of C is done by substituting attribute values of actual tuples for attibute names in C.

(5)

Projection
This is an operation of making a new relation S whose attributes are specified as from relation R. The operation is expressed as . For example, table3 is projected by name and hobby to make table4(1).

The above basic operations are combined to define the following operations.

(6)

Intersection
For two relations R and S, .

(7)

-Join
Suppose there are two relations R and S, and and are attributes in R and S respectively. The -join of R and S on and is a relation denoted by . Here, is an arithmetic comparison operator and if it is an equal, the operation is called equi-join. Furthermore, if the only one of the same attributes is left and the other is removed from the equi-joined relation, the operation is called natural-join.

(8)

Division
Suppose there are two relations R and S, and denote tuples in each relation and . The division is an operation to find for which are included in tuples of R for all . It is obvious that .

Those mentiond operations including the first five basic ones and the latter three composites are so-called relational algebra. On the other hand, relational calculus is generaly a set of tuples which satisfies a logical formula where an argument t is a tuple variable. It has been proved that all the relational algebraic operations can be translated in relational calculus and if the scope of tuple variables are specified, they are equivalent.
